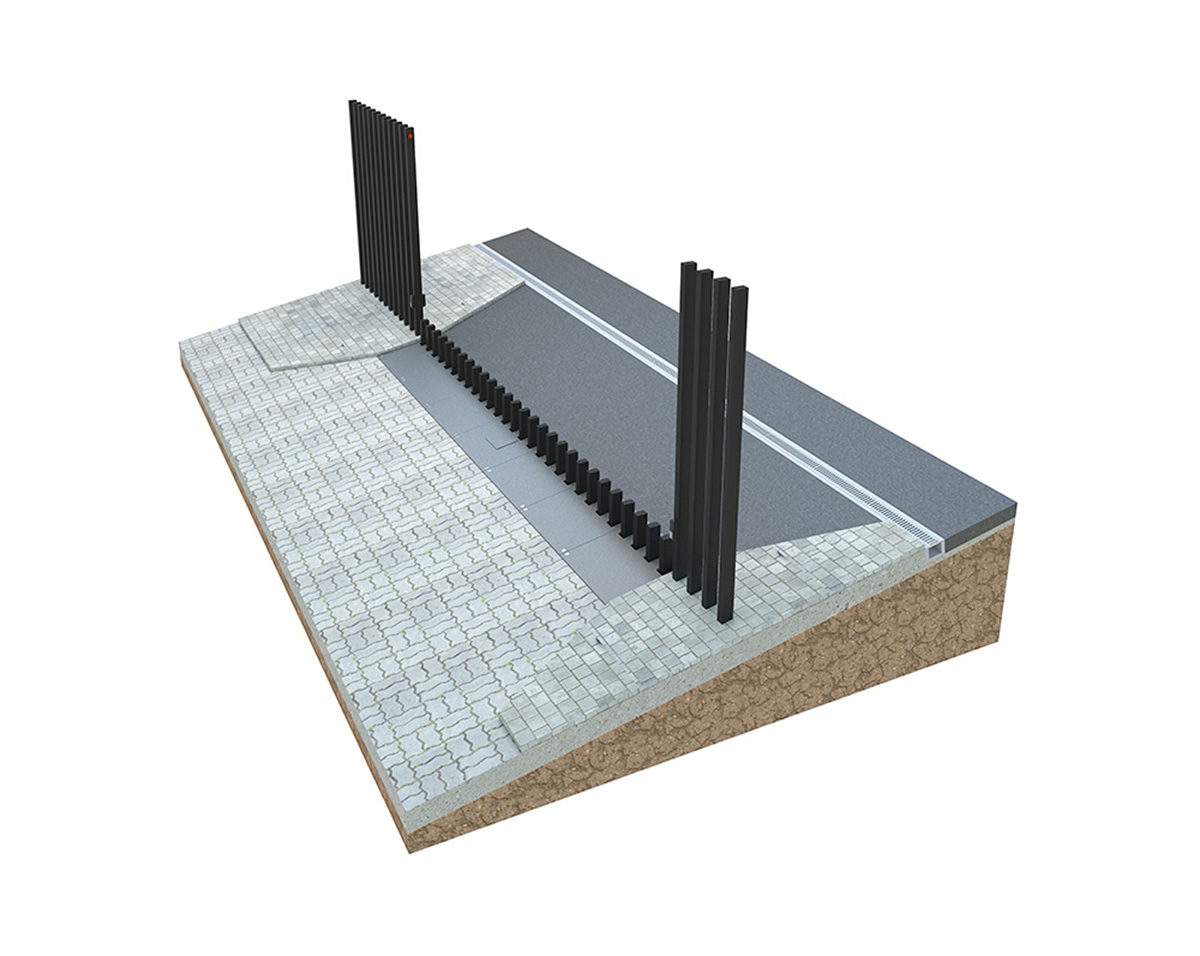

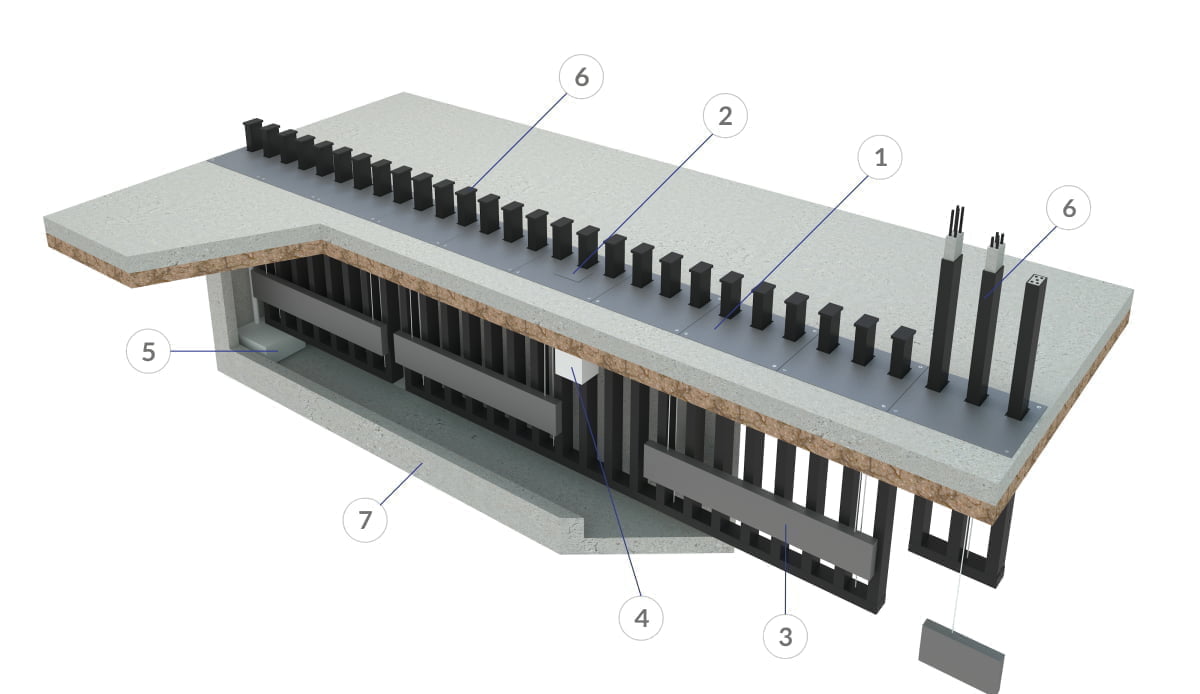

The main component of the retractable gate and fence system is a gate leaf that is retracted into the ground, using a built-in drive. The leaf becomes invisible when it is open. The gate is placed in a concrete vault ensuring stability and durability of the system. It is modular in design – the individual gate leaves can be combined to make barriers of different lengths. The gate leaf is connected by a system of wire ropes and sheaves with a system of counterweights, the weight of which is equal to the weight of the leaf. This design allows for the use of conventional and widely available low-power electric drives, which guarantees the reliability, ease of operation and maintenance of the entire drive system.

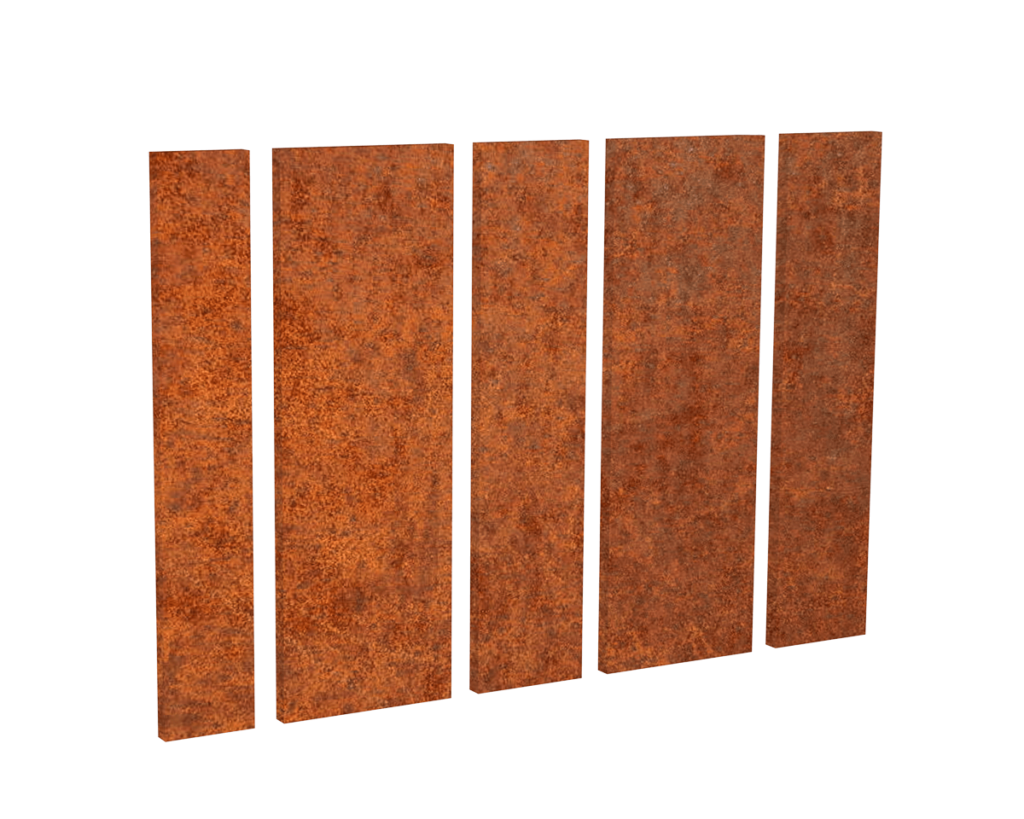

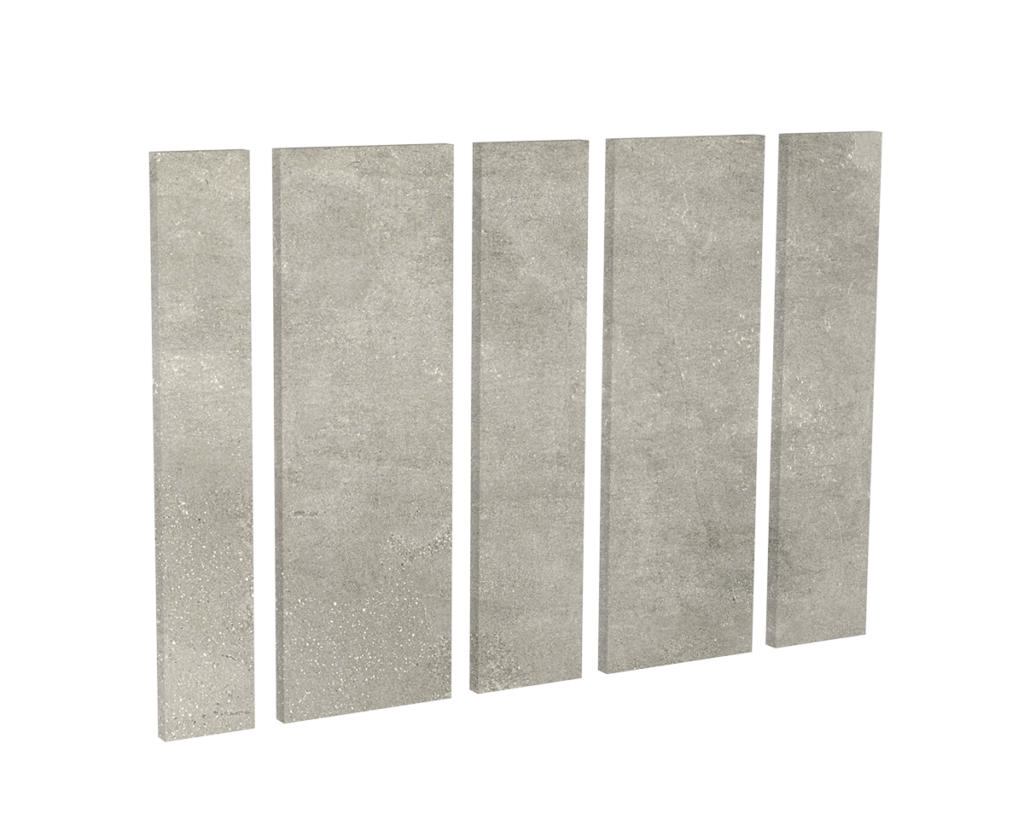

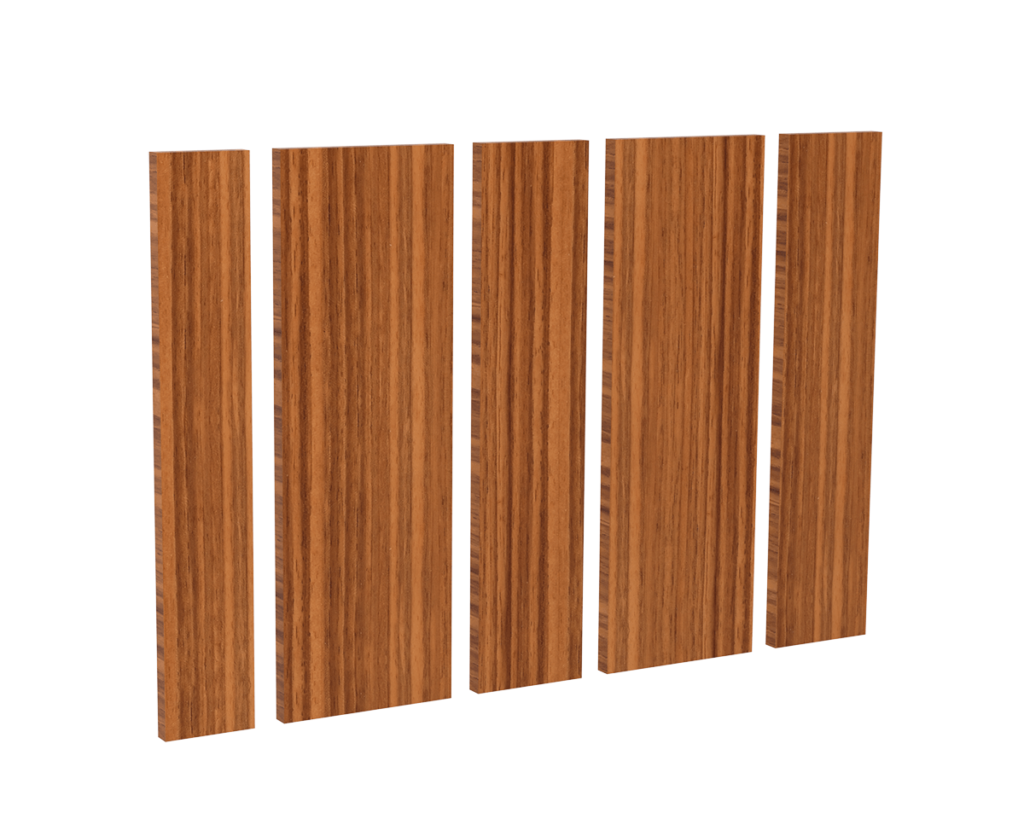

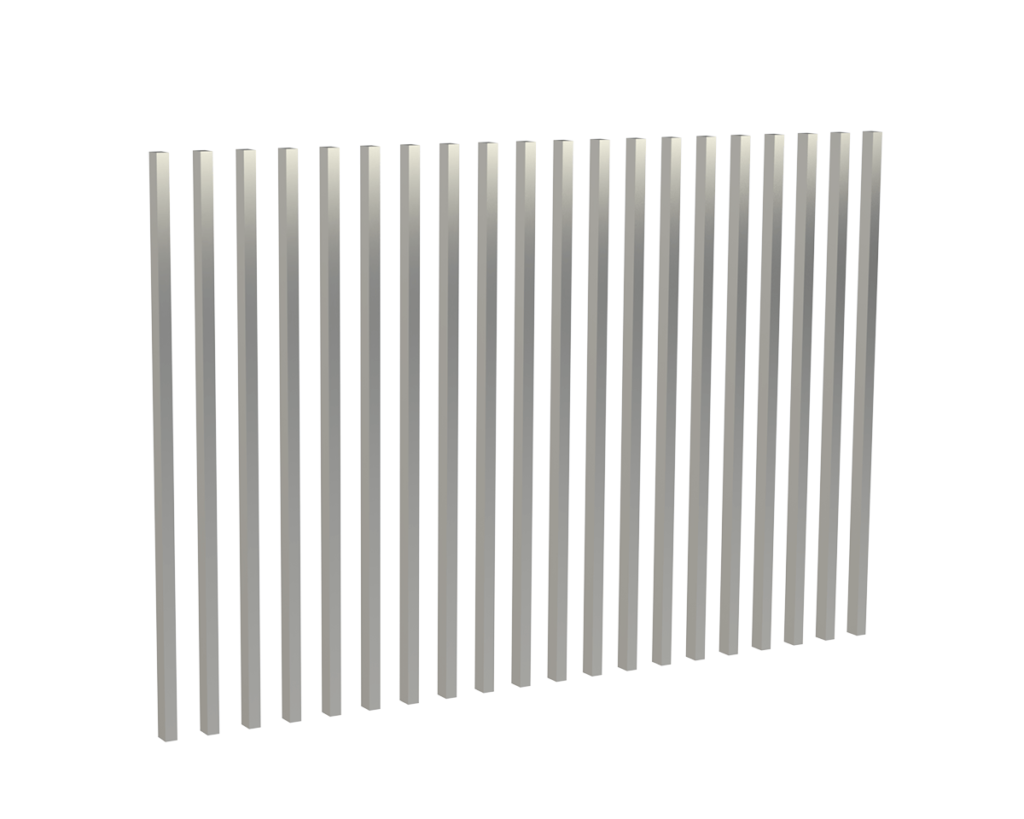

Retractable gates and fences allow you to create any arrangement of barrier you like, by using a wide range of available designs or using materials provided by the customer. The cladding or infill material of gates and fences can be mounted at any angle and consist of materials such as:

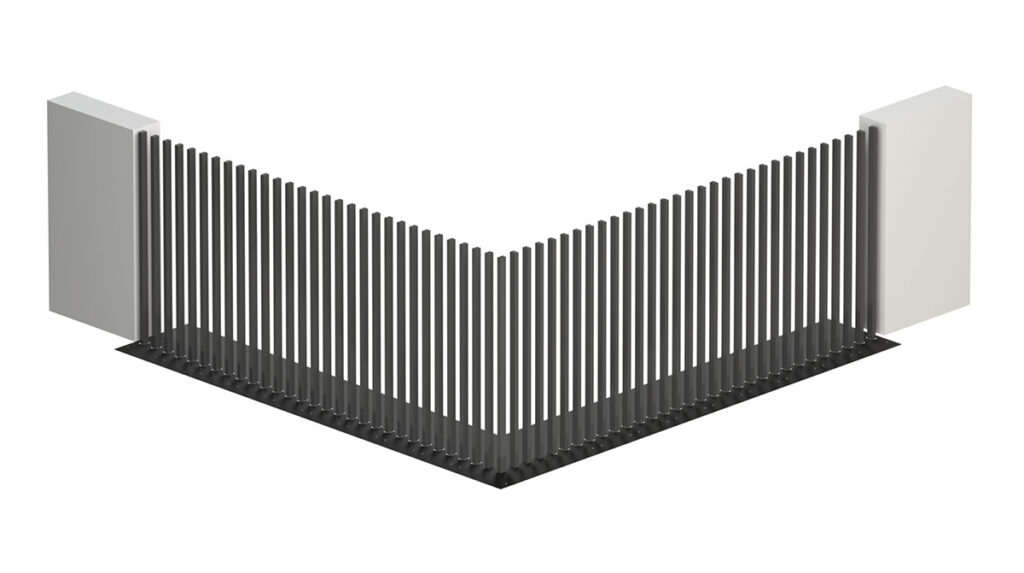

Retractable gates and fences allow you to freely shape the line of the gate or fence to be retracted into the ground. By default, the gates are straight sections, but they can also be made in the shape of an arc or even be a crooked line:

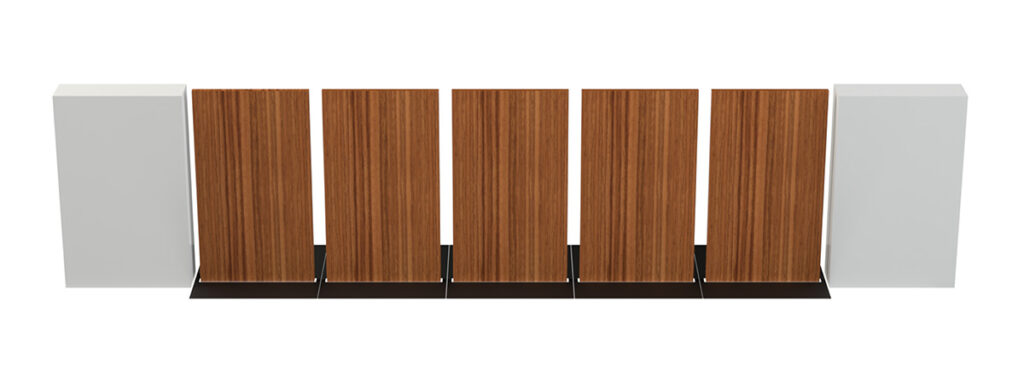

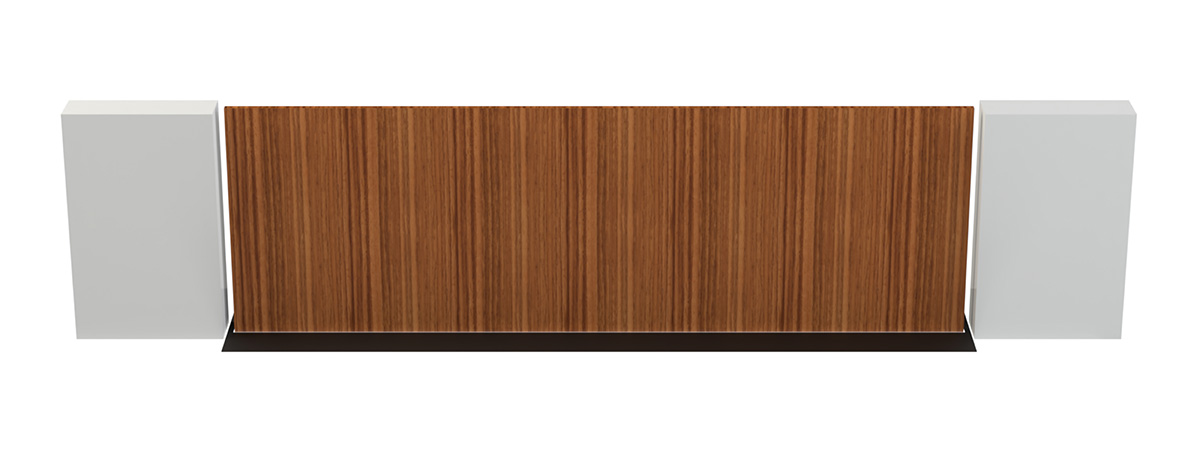

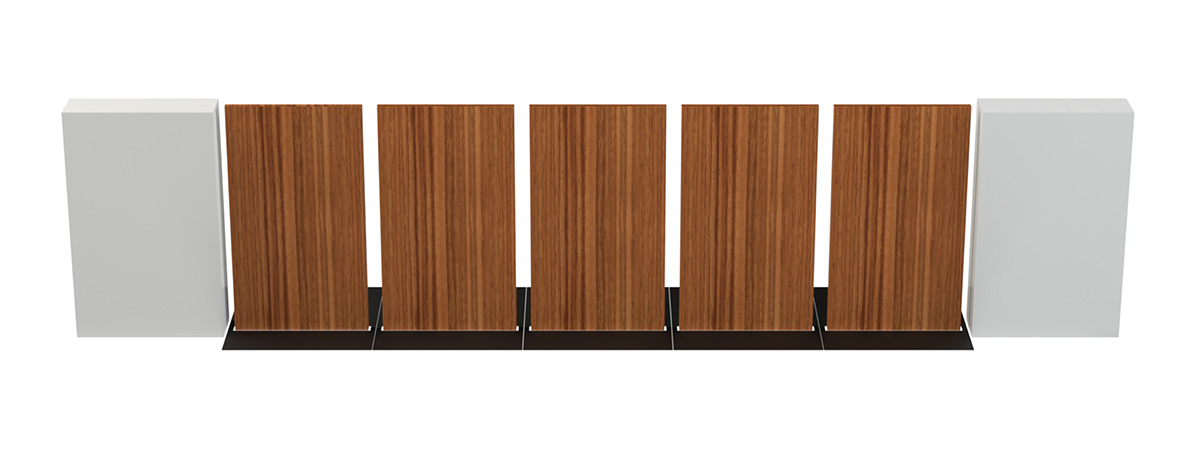

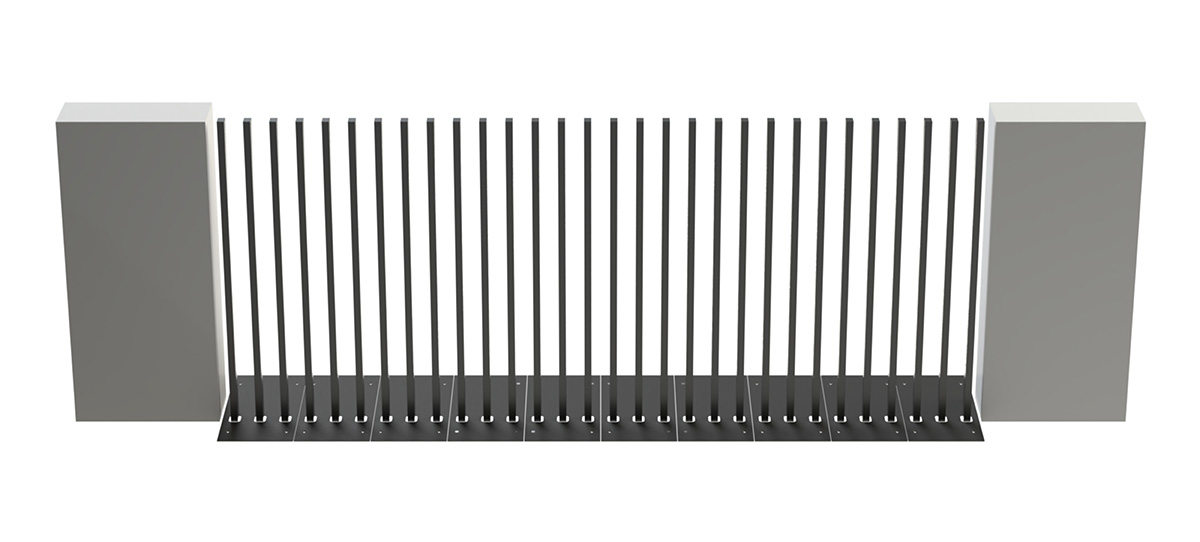

Retractable gates and fences can have different types and quantities of cladding or infill. Standard gates are made of pickets of any cross-section, between which there is a visible gap of 100 mm (4″). They can also be made in semi-clad or fully-clad design infill versions, which provide a greater level of privacy:

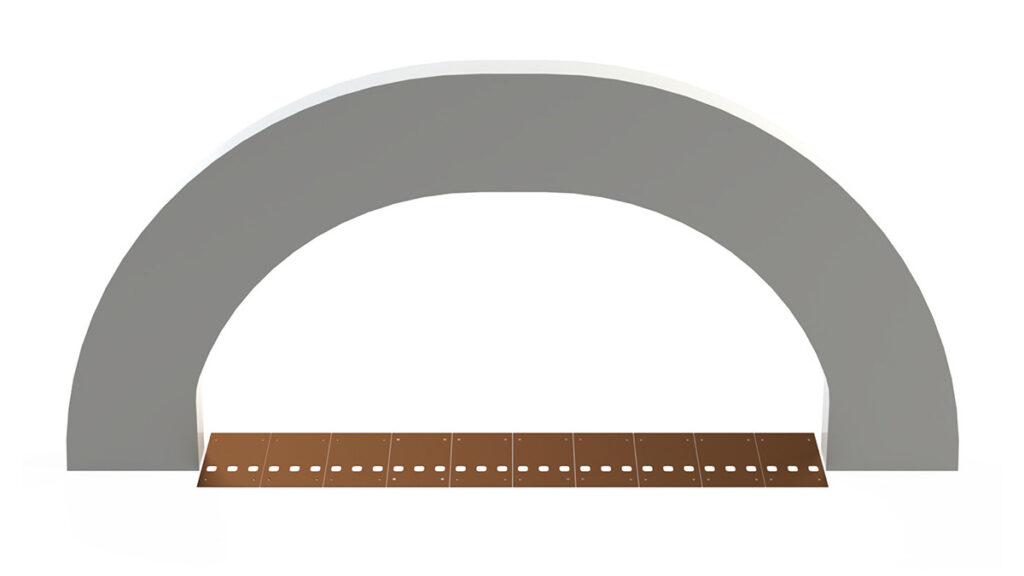

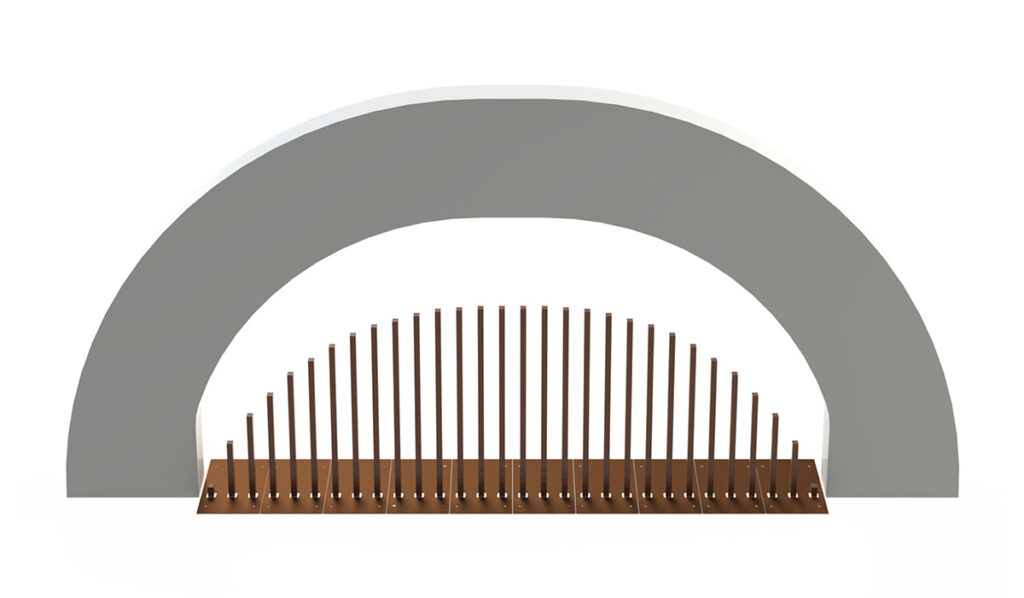

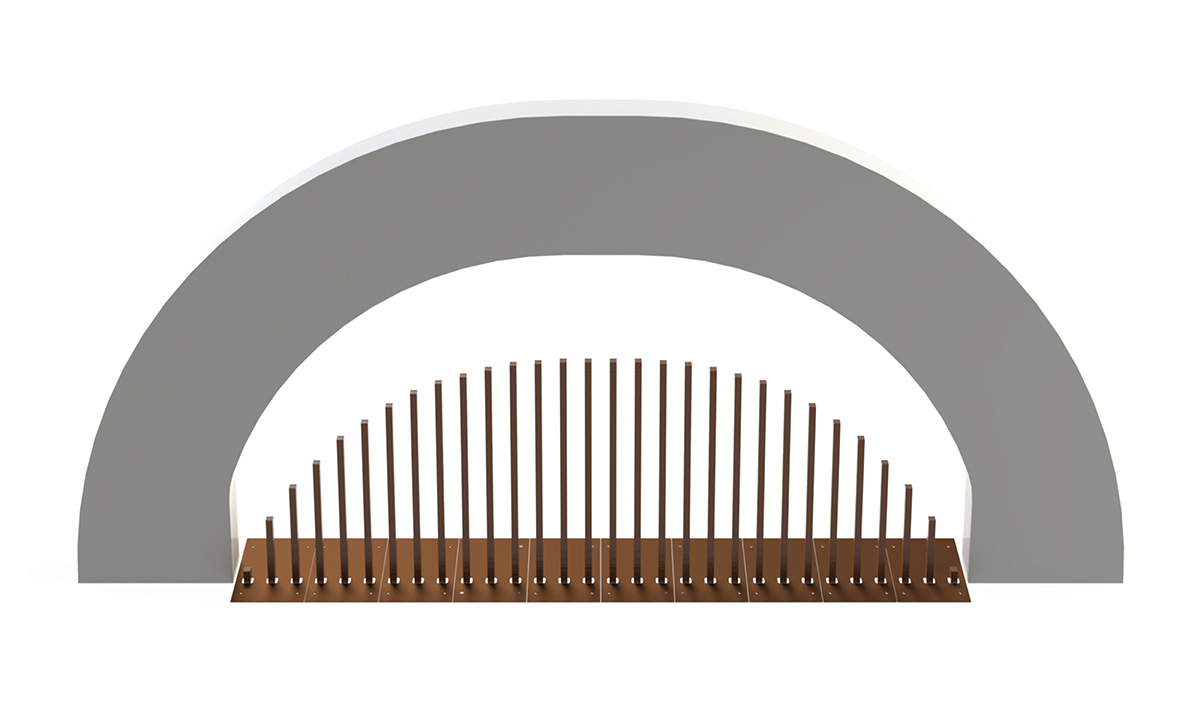

FANCY FENCE system retractable gates and fences can be configured so that the height of the gate or fence is individually tailored to your needs. It is possible to have the individual pickets at any height and shape you desire. This allows you to completely secure access in the case of unusual entrances to property, buildings or facilities:

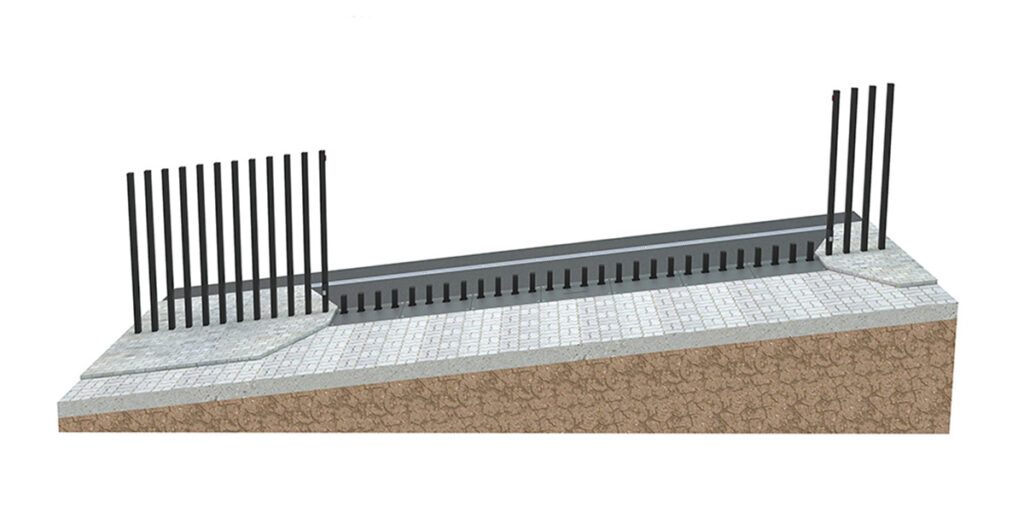

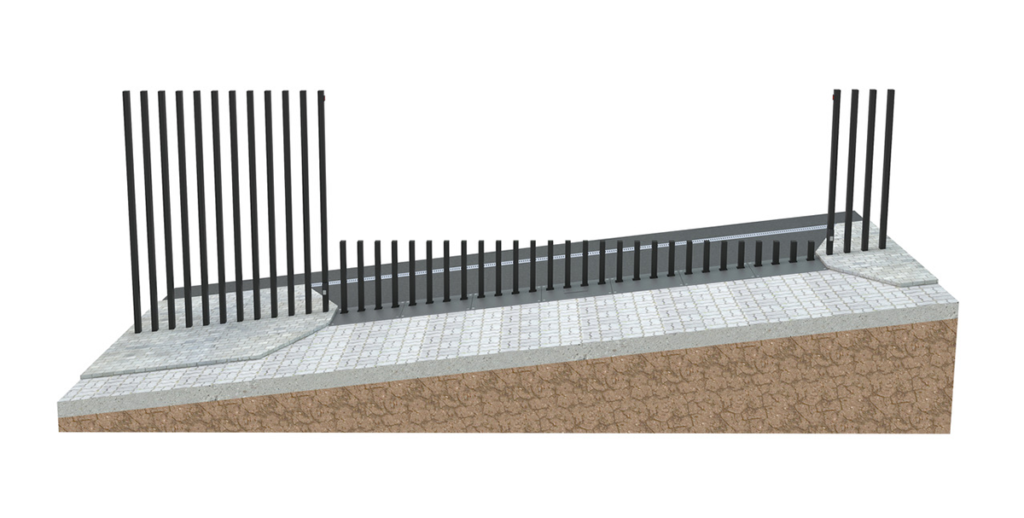

Thanks to the vertical movement of the leaves, FANCY FENCE system retractable gates and fences are the only type available on the market that can be installed on sloping driveways without having to level the terrain around them. When installed in areas with a slope perpendicular to the gate leaf, it is necessary to place channel drainage along the length of the gate, on the higher side, to prevent any water runoff from flooding the concrete vault.

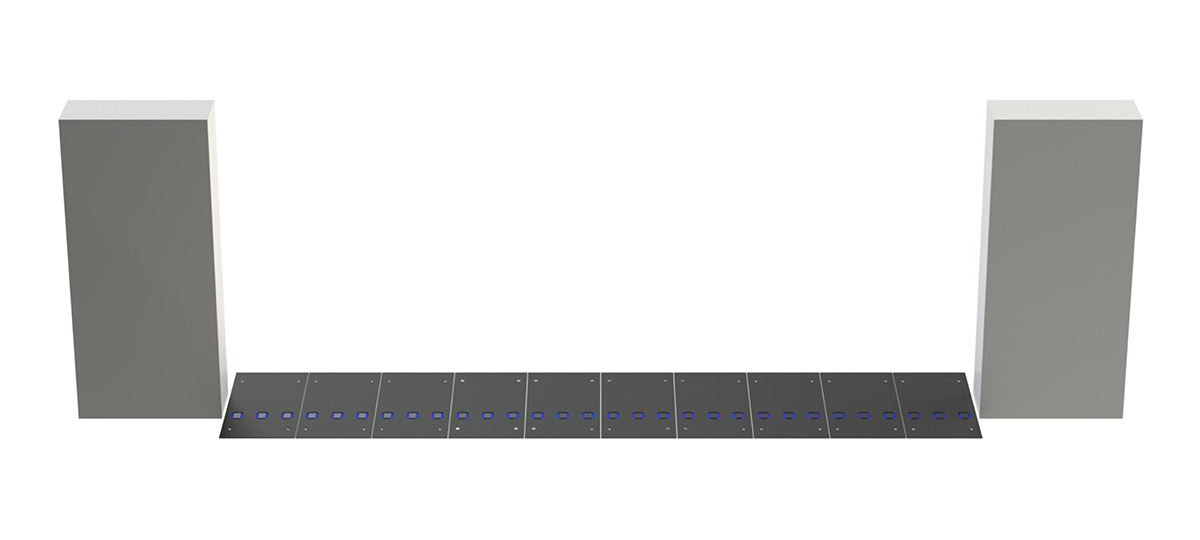

FANCY FENCE system retractable gates and fence are resistant to the ingress of sand or dust. This is because all mechanisms exposed to contamination are hidden in a concrete vault, under covers. In areas particularly prone to large quantities of sand, it is possible to use additional seals to close the openings around the pickets.
FANCY FENCE system retractable gates are equipped with electro sensitive protection equipment mounted on both sides of the gate to protect people, animals and vehicles from injury or damage. When the safety circuit is triggered it stops gate operation. Additional protection is provided by overload equipment fitted as standard in the electric drives of our gates. It is worth noting that, unlike other types of gates available on the market, FANCY FENCE gates, even if all other safety systems fail, still do not pose the same risk to human life, animals or property as other types of gates. The FANCY FENCE system meets stringent safety requirements, which has been confirmed by independent certification bodies.
Emergency manual opening or closing of the gate is enabled with the use of a special handle, through the inspection hatch located in the middle cover. The fact that the gate leaf is connected to a counterweight system of the same mass allows it to be lowered or raised easily, even by children.
The FANCY FENCE system pedestrian access gate does not have standard hinges, it rotates around one of the pickets. This is possible due to the use of a horizontal beam with pickets that are welded to the top of it. The beam is placed below the level of the pavement, which makes it possible to obtain the effect of an “invisible pedestrian access gate”, integrated with the rest of the fence, rendering it virtually unnoticeable. Naturally, customers who want their pedestrian access gate to stand out from the rest of the fence have a wide range of options to do this by using different materials, designs or colours.
To achieve the desired effect, FANCY FENCE system retractable entrance gates are installed by specialized and thoroughly trained teams. The gate mechanism is assembled in an underground concrete vault previously prepared according to the precise guidelines contained in the Architect Area. It is possible to order a precast concrete vault, which is delivered to the installation site. For available options, please contact your distributor.

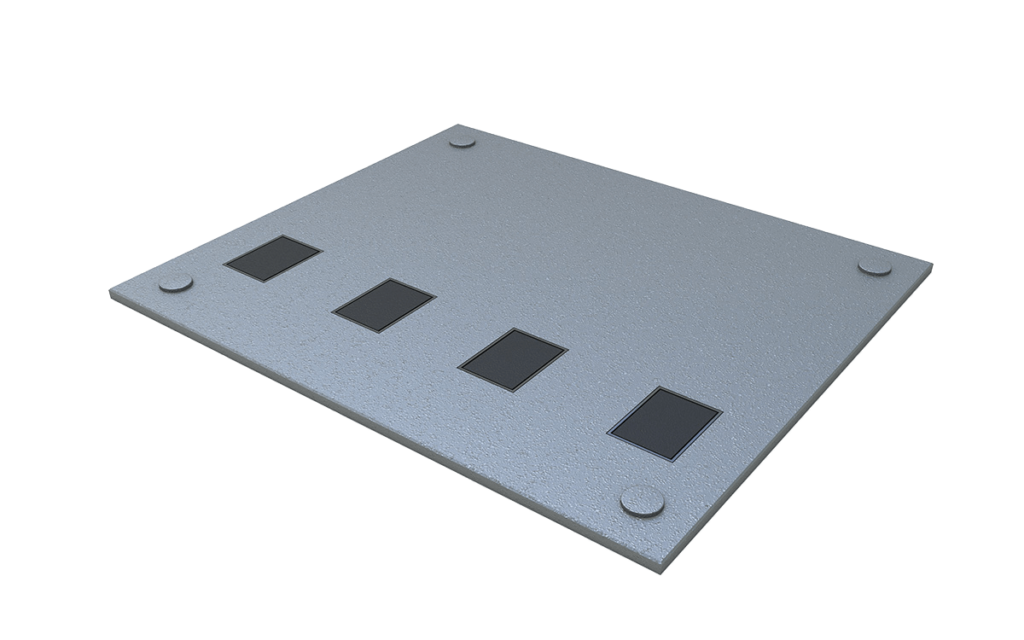

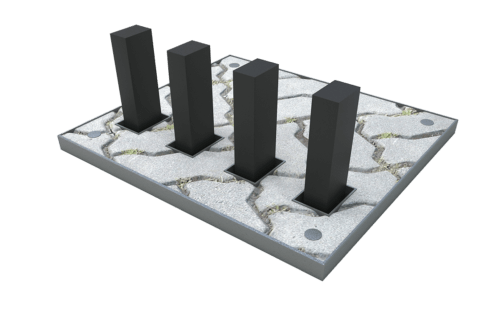

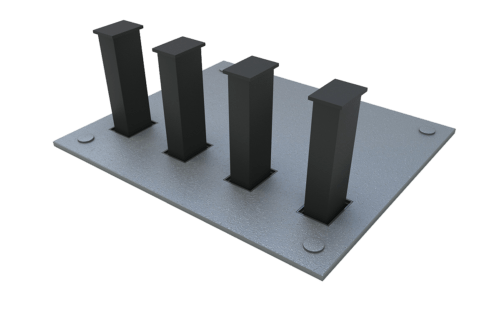

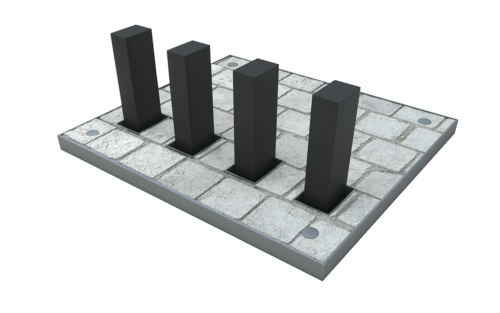

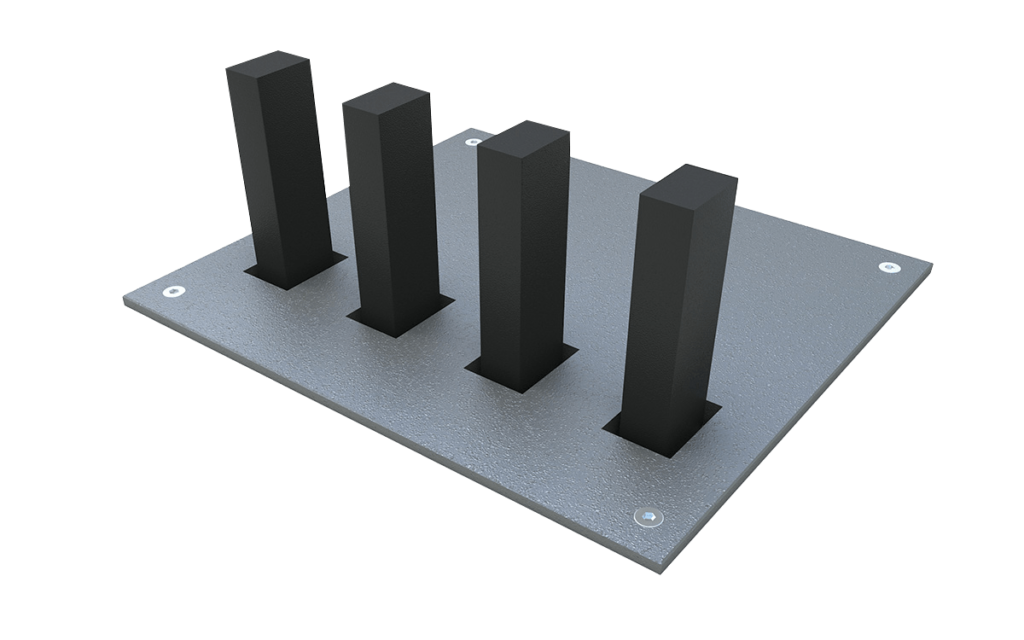

We offer a variety of cover options that can be customized to suit individual preferences. Our options include
Detailed information on available sizes, designs, types of covers, as well as hole closures, is presented on the distributor’s website.
For safe zones, it is recommended to use covers with hole closures in the form of overhanging caps on pickets.
Detailed information on available sizes, designs, types of covers, as well as hole closures, is presented on the distributor’s website.
FANCY FENCE system retractable gates and fences have been tested in climate chambers simulating extreme ambient conditions (from -30°C to +50°C).
The reinforced concrete vault is fully waterproof, and so, the only place where it is possible for water to enter the vault is through the holes in the covers that the pickets move through. In the event that water starts to fill the vault, a dedicated pump has been placed at the bottom of the vault, to automatically pump out the water.
First of all, it should be emphasized that water is not a big deal for FANCY FENCE system retractable gates and fences. All components are designed for outdoor installation, including in harsh weather conditions.
The reinforced concrete vault is fully waterproof, and so, the only place where it is possible for water to enter the vault is through the holes in the covers that the pickets move through. In the event that water starts to fill the vault, a dedicated pump has been placed at the bottom of the vault, to automatically pump out the water.
In case of power failure, it is possible to open or close the retractable gate manually. Emergency manual opening or closing of the gate is enabled with the use of a special handle, through the inspection hatch located in the middle cover.
The fact that the gate leaf is connected to a counterweight system of the same mass allows it to be lowered or raised easily, even by children.
Due to the use of exactly the same components as those for sliding gates, FANCY FENCE system retractable gates and fences are no less reliable than typical sliding gates.
As with other types of gates, the most common potential problems during use involve the drive. This is why, it is easily accessible by removing the middle cover. Any other mechanical failure requires the other covers to be removed so that the service technician can conveniently access all gate components.
